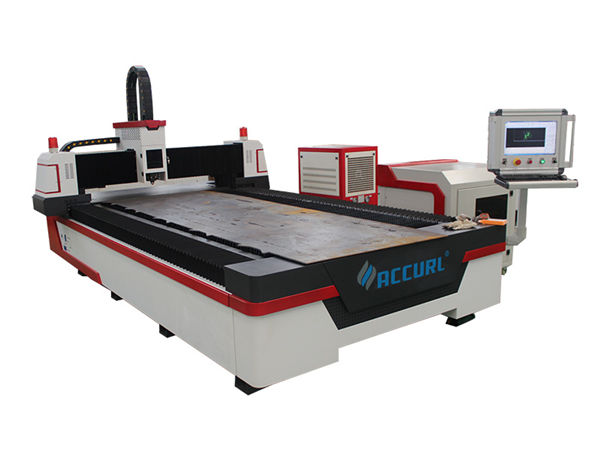

fiber optical path industrial laser cutting machine compact with automatic nesting system

Detalles do produto

Certificación: ISO9001: 2008

Condicións de pago e envío:

Cantidade mínima de pedido: 1

Prezo: negociación

Detalles do Embalaje: Estuche de madeira estándar

Prazo de entrega: 7-15 días

Capacidade de subministración: 1000 unidades / mes

Descrición detallada do produto

Nome do produto	Fully Enclosed Fiber Laser Cutting Machine	Láser de fibra:	1000W
Área de traballo:	3000 * 1500mm	Precisión:	± 0,03-0,05mm
Fonte de alimentación:	380v	Garantía:	1 ano

Principais características

It is with full cover can use for both cutting metal sheet and pipes fiber laser cutting machine.Adopt Maxphotonics laser source and high precision rack and linear guide to transmit.
Can cut lines and holes with different from different directions on the pipe.
Can cut inclined section at the end of the pipe.
Can cut beanch pipe intersected with the main circular pipe.
Can cut square hole,waist-shaped hole and circular hole on the pipe.
Can truncate the pipe.
Can cut all kinds of graphics on the surface of the square pipe.
Can cut different sizes metal sheets.
Can cut holes on the molding box.

Características

1, High speed, high precision, high efficiency and low cost
2, Easy on operation, fiber optical path, without tediously adjustment on optical path
3, Compact structure, good sealing, strongly adaptable to changes in the environment.
4, With the perfect automatic nesting system which can save time, save the materials, the sheet utilization ratio up to 95%

Parámetros Techinical

^{FONTE LÁSER}	^{Maxfotónica Láser}
^{Cabeza de corte}	^{RAYTOOLS BT-240}
^{MODO DRIVE}	^{MEDIO DUAL}
^TRANSMISIÓN	^{APEX TAIWAN}
^{GUÍA RUELO}	^{TPI TAIWAN}
^{MOTOR DE SERVO E CONDUCTOR}	^{4 conxuntos de YASKAWA DE XAPÓN}
^REDUCTOR	^{FRANCIA MOTOREDUCER}
^{FRÍA DE AUGA}	^TEYU
^{SISTEMA DE CONTROL}	^{CYPCUT DE SHANGHAI, CHINA}
^ORDENADOR	^{ORDENADOR DE INDUSTRIA}
^{REQUISITO DE PODER}	^{3 FASE AC 380V 50HZ}
^{PESO BRUTO}	^3.05MTS
^{FILA TERMINAL}	^{FRANCIA SCHNEIDER}
^RELÉ	^{FRANCIA SCHNEIDER}
^{VALOR DE SOLENOIDOS}	^{XAPÓN SMC}
^{VALOR PROPORCIONAL}	^{SMC Xaponés}
^{TAMAÑO DE TRABALLO}	^{3000 * 1500 MM}

As pezas accesorias

1.High precision screw imported CNC fiber laser cutting machine. It use Maxphotonics fiber laser laser
fiber laser source is small and light, which helps to move easily. Its easy integration, stable performance and good quality are well guaranteed.
2. Cabeza de cortador láser de fibra especial de tubo e sistema automático de seguimento.

As mostras e aplicación

Fully Enclosed Fiber Laser Cutting Machine for metal pipes can be applied for Different profiles,including round pipes, square tubes, rectangular tubes or triangular tubes,etc,of carbon steel, stainless steel,etc;
Suitable for aerospace technology, aircraft manufacturing, rocket manufacturing, robot manufacturing, elevator manufacturing, ship manufacturing, sheet metal cutting, kitchen furniture, electronic components, automotive parts, cooling, and ventilation pipes, signs, metal and other metal parts processing industry, sports industry.
